High-Precision 4-Post Hydraulic Stamping Press for Deep Drawing & Metal Forming
(Achieve Superior Parallelism and Precision in Your Sheet Metal Operations)
Are you looking for a high-performance 4-post hydraulic stamping press engineered for exceptional accuracy in deep drawing and intricate sheet metal forming? Our PSQ series hydraulic press is designed with a robust 4-column structure to ensure outstanding parallelism and consistent results for your most demanding applications.
Unmatched Parallelism with 4-post hydraulic stamping press

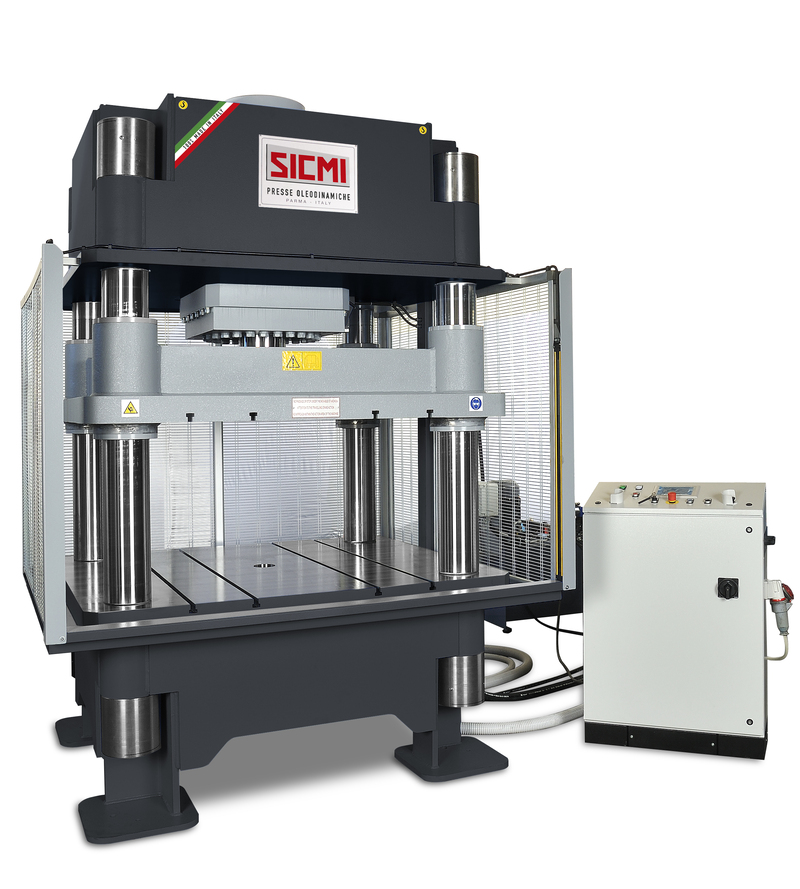

The PSQ hydraulic press features a mobile upper platen that travels along four robust columns, guaranteeing exceptional parallelism throughout the entire molding process. This superior guidance system ensures consistent pressure distribution and high-quality formed parts.
Secure Mold Fixation with Integrated T-Slots
Both the mobile upper platen and the fixed lower platen are equipped with precision T-shaped grooves, providing a secure and versatile system for fixing your valuable molds and dies. This ensures accurate alignment and minimizes setup times.
Prioritizing Safety: Comprehensive Protection Features
Safety is paramount in any workshop environment. The electro-hydraulic press is equipped with fixed side protection nets and a rear safety net, providing comprehensive protection for operators during all phases of operation.
Ergonomic Design and Separate Control Systems
The electrical control panel and the hydraulic power unit are located separately from the main hydraulic press body. This thoughtful design promotes an ergonomic workspace and facilitates easy maintenance and access.
High-Efficiency Hydraulic System with Controlled Approach Speed
The hydraulic cylinder features an approach speed below 30 mm/sec, ensuring controlled and safe engagement with the workpiece. This contributes to precise forming and reduces the risk of damage.
Fully Automatic Operation for Maximum Productivity
The 4-column hydraulic stamping press, model PSQ, is exclusively available in an automatic version, operated through the simultaneous use of dual safety buttons. This ensures operator safety while maximizing production efficiency. The press is also equipped with cylinder limit switches for precise stroke control and features automatic raising of the work surface, streamlining the workflow.
Reliable Components for Consistent Performance
The integration of a dependable Siemens PLC and high-performance Rexroth solenoid valves comes standard with the PSQ press, ensuring reliable and consistent operation for years to come.
Enhance Your Capabilities with Optional Accessories:
- Front Photoelectric Barriers: For an additional layer of operator safety.
- Digital Control with Siemens Display: Provides precise control and monitoring of press parameters.
- Timer: For automated cycle control.
- Piece Counter: To accurately track production output.
- Air/Oil Heat Exchanger with Decompression Valve: Maintains optimal hydraulic fluid temperature for consistent performance.
- Decompression Valve: For controlled pressure release.
- Pressure Switch: For accurate pressure monitoring.
- Hydraulic Cushion (20 to 80 tons): For enhanced deep drawing and forming capabilities.
