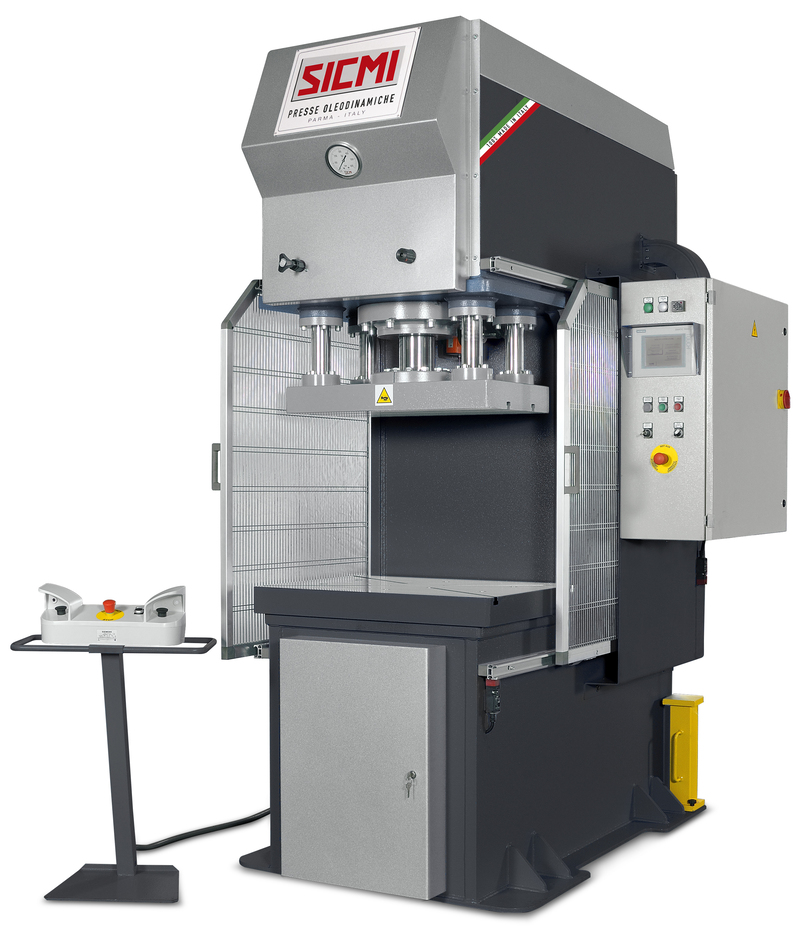

High-Speed C-Frame Hydraulic Stamping Press for Sheet Metal Deformation
(Optimize Your Production with a Robust and High-Performance Hydraulic Molding Press)
If you are looking for a high-speed C-frame hydraulic press that combines rapid operation with high precision for stamping, deep drawing, and sheet metal deformation, our MCL press is the ideal solution. With a main cylinder approach speed of up to 125 mm/sec, it will significantly boost the efficiency of your production.
Robust Structure and Precise Movement: The Core of the MCL Press
The MCL hydraulic press is built with a monolithic frame that ensures stability and long-term durability. The movable upper platen slides along 4 guides, guaranteeing precise and parallel movement, which is essential for high-quality machining. The fixed lower platen is securely bolted to the frame.
Both the upper and lower work tables are equipped with T-slots, a practical and fast system for securing dies and molds. This feature reduces setup times and increases the flexibility of your production.
With a hydraulic cylinder stroke of 500 mm and a daylight (gap between platens) of 600 mm, the MCL press offers a versatile workspace for various stamping and deep drawing operations.
Rexroth Hydraulic Power Unit: Reliability and Optimal Control
The C-frame press is equipped with a Rexroth hydraulic power unit with monitored solenoid valves, synonymous with reliability and precision in controlling movement and pressure, ensuring consistent and high-quality results.
Standard Equipment for Safe and Efficient Operation:
- Siemens CPU for quota setting: Precision and repeatability in machining.
- Cylinder adjustment with limit switch sensors: Accurate control of the cylinder movement.
- Automatic two-hand safety controls: Maximum operator safety.
- Air/oil heat exchanger: Maintains the optimal temperature of the hydraulic oil.
- Pressure switch: Constant monitoring of the system pressure.
- Lateral protective metal fences: Safety for the working environment.
- CE Certificate of Conformity – “Annex IV”: Guarantee of compliance with European regulations.
Customize Your Electro-Hydraulic Press with Optional Accessories:
- Front photoelectric barriers: Additional operator protection.
- Digital control with Siemens display: Advanced programming and monitoring of operations.
- Blank holder cushion from 20 to 80 tons: Optimization for deep drawing processes.
- Digital control of the blank holder cushion: Precise control of the blank holder force.
- Timer: Automation of work cycles.
- Piece counter: Monitoring of production output.
- Sliding side safety guards with safety sensors: Increased safety and accessibility.
- Prismatic guides: Increased precision and stability.
- Proportional valve for speed control: Fine adjustment of the working speed.
- Proportional valve for pressure control: Precise adjustment of the working pressure.
- Separate management of approach and working speed: Optimization of cycle times.
- Variable displacement piston pump: Energy efficiency.
- Air/oil exchanger with independent recirculation: Optimal cooling for intensive cycles.
