High-Speed Two-Post Hydraulic Molding Press for Rapid Cold Sheet Metal Forming
(Boost Production Cycles with Approach Speeds Up to 125 mm/sec)
Looking for a high-speed two-post hydraulic press that dramatically accelerates your molding and cold sheet metal forming processes? Our MST series hydraulic press is specifically engineered for rapid cycle times, boasting an impressive hydraulic cylinder approach speed of up to 125 mm/sec to maximize your output.
Engineered for Speed and Precision: The MST Advantage

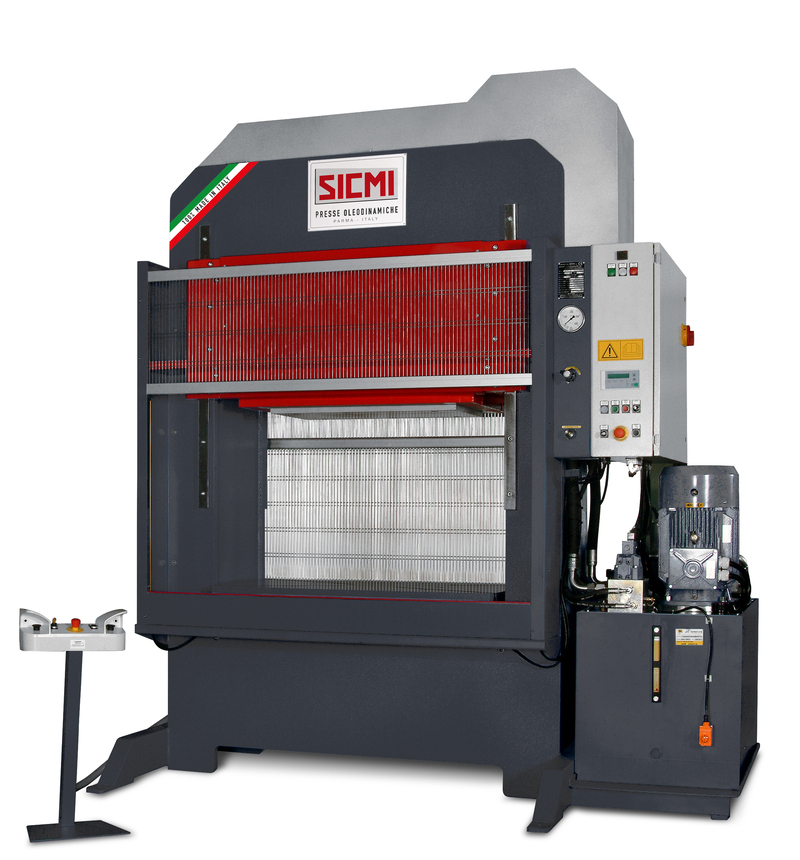

The MST hydraulic press features a robust design with a mobile upper platen guided by four precision columns, ensuring stability even at high speeds. The fixed lower platen is securely bolted to the press’s monolithic structure, providing a solid foundation for demanding applications.
Both the upper and lower platens are equipped with convenient T-slots, allowing for fast and secure fixing of your molds and dies. This minimizes downtime and streamlines your production workflow.
With a generous hydraulic cylinder stroke of 500mm and a substantial 600mm daylight (gap between work surfaces), the MST press offers ample working space for a wide range of molding and forming tasks.
Advanced Rexroth Hydraulics for Reliable High-Speed Operation
The MST electro-hydraulic press is equipped with a high-performance Rexroth hydraulic power unit featuring monitored solenoid valves. This ensures precise control and reliable operation even at high speeds, contributing to consistent part quality and reduced cycle times.
Standard Features Designed of our High-Speed Two-Post Hydraulic Molding Press:
- Siemens CPU for Quota Setting: Enables precise positioning and repeatable results.
- Cylinder Adjustment with Limit Switches: Ensures accurate stroke control and safe operation.
- Automatic Movement Controls with Double Buttons: Enhances operator safety during high-speed cycles.
- Air/Oil Heat Exchanger: Maintains optimal hydraulic fluid temperature for consistent high-speed performance.
- Pressure Switch: Provides accurate pressure monitoring for process control.
- Rear Protective Metal Mesh: Ensures operator safety during high-speed operation.
- CE Certificate of Conformity – “Annex IV”: Demonstrates compliance with European safety standards.
(Primary keywords: high-speed hydraulic press, fast molding press, two-post hydraulic press, cold forming press)
Maximize Your Output: Optional Accessories for Enhanced High-Speed Molding:
- Front Photoelectric Barriers: For enhanced operator safety during rapid cycles.
- Digital Control with Siemens Display: Provides advanced control and monitoring of high-speed molding parameters.
- Hydraulic Cushion (20 to 80 tons): Enables more complex deep drawing and forming at high speeds.
- Digital Control of the Blank Holder Cushion: Offers precise control for high-speed drawing operations.
- Timer: For automated high-speed cycle control.
- Piece Counter: To accurately track high-volume production.
- Prismatic Guides: For even greater precision and stability at high speeds.
- Proportional Valve for Speed Control: Allows fine-tuning of the high approach and working speeds.
- Proportional Valve for Pressure Control: Enables precise pressure adjustments for optimal high-speed forming.
- Separate Management of Approach Speed and Working Speed: Provides ultimate control over the high-speed cycle.
- Variable Displacement Piston Pump: Optimizes energy efficiency during high-speed operation.
- Air/Oil Exchanger with Independent Recirculation: Ensures consistent cooling for demanding high-speed applications.
