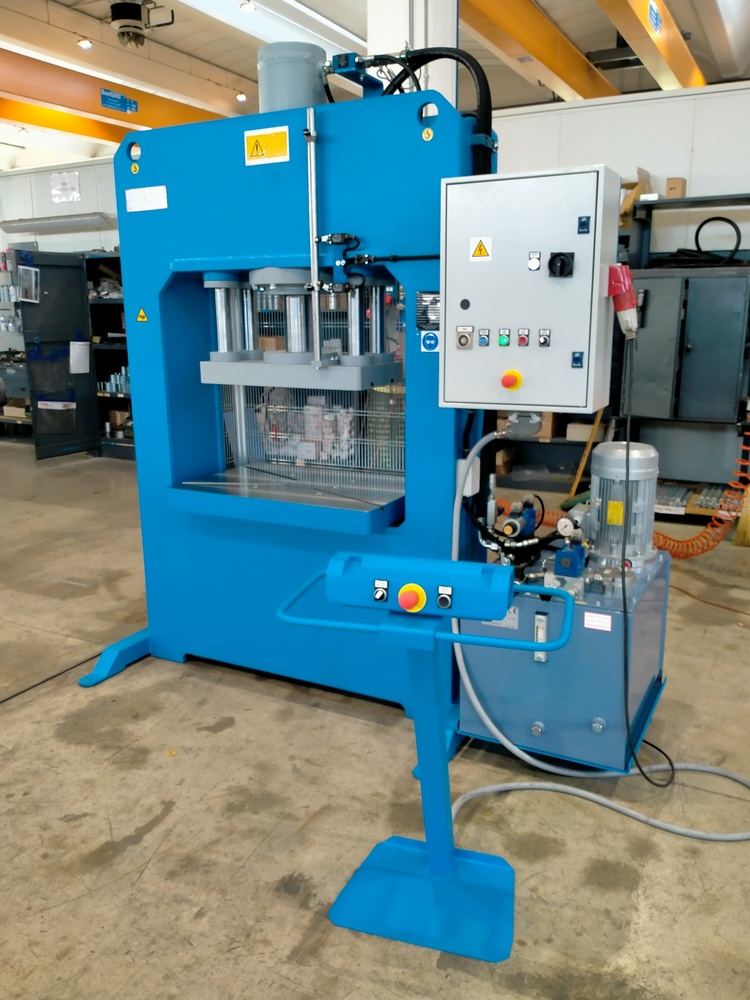

A 100-ton electro-hydraulic metal forming press is now prepared for shipment. This robust machine incorporates a timer, enabling precise adjustment of the duration the hydraulic cylinder remains at the end of its stroke, ensuring consistent forming results. Additionally, a pressure switch allows for easy setting of the maximum pressure level required for different metal forming tasks.
This advanced hydraulic press also features a crucial lock valve designed to maintain constant pressure during operation. This valve, strategically located near the master cylinder, functions to prevent any backflow of oil within the hydraulic circuit. By maintaining a consistent fluid level in the cylinder, it guarantees uniform pressure application throughout the entire preset pressing time, leading to improved accuracy and repeatability in metal forming.
This versatile electro-hydraulic metal forming press offers both manual and automatic operating modes, providing flexibility for various applications.
The manual mode is primarily utilized for the precise adjustment of molds and the cylinder limit switch. In this mode, the operator can raise the cylinder by simply holding down the designated button on the control panel, allowing for fine-tuning of the setup.
In automatic mode, the cylinder features an intelligent return mechanism. It automatically ascends each time the operator releases the dual safety buttons during the descent phase or upon the completion of a full pressing cycle. This feature enhances efficiency and operator convenience during repetitive metal forming processes.
The cylinder offers a swift approach speed of 25 mm/sec, contributing to faster cycle times. Its stroke is precisely controlled through adjustable microswitches, allowing for accurate positioning and forming depth.
This powerful double column hydraulic press delivers a substantial forming force of 100 tons, making it suitable for a wide range of metal forming applications. For enhanced safety, the rear of the machine is protected by a durable metal mesh, ensuring a secure working environment. This reliable electro-hydraulic metal forming press is ready to optimize your production processes.
