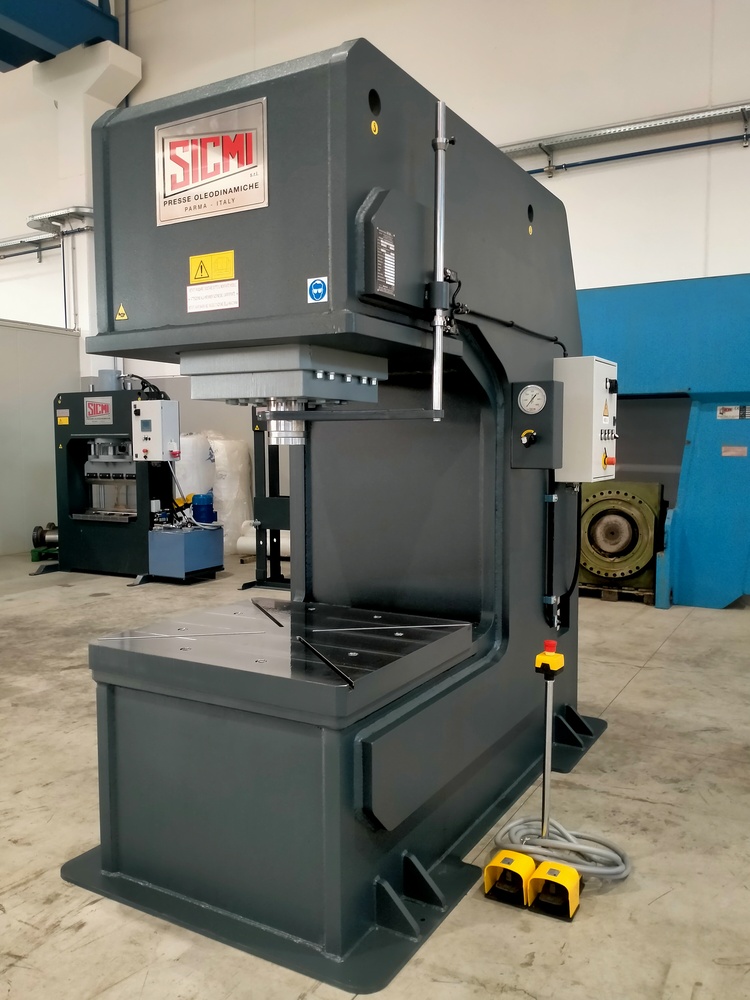

A newly manufactured C-Type hydraulic straightening press is ready, built according to a specific customer request. This specialized press is intended for sheet metal straightening tasks within shipyards. It features an 800mm throat depth, enabling the placement of larger metal plates than the standard PCR 150 hydraulic gooseneck press model typically accommodates.
The increased throat depth of this hydraulic press necessitated a reinforcement and upsizing of the entire metal framework of the machine. This structural enhancement ensures its resilience against stress when handling larger workpieces.
The work surface is fully milled and incorporates T-slots, allowing for the attachment of supplementary equipment for pressing applications. The metal piece support platform measures 1000 x 900mm, providing ample area for various sheet metal sizes.
The hydraulic power unit operates at two speeds. The cylinder has a descent speed of 9 mm/sec and a working speed of 4 mm/sec, offering a balance of efficiency and control during the straightening process.
Operation of the press is managed via a dedicated foot pedal. This hands-free control allows the operator to keep both hands free during pressing, facilitating the manipulation of the sheet metal being straightened.
This C-Type hydraulic straightening press features a cylinder stroke that is manually adjustable using end-of-stroke sensors.
The pressure adjustment is also manual, controlled by a specific knob. The current pressure level is displayed on the side of the electro-hydraulic straightening press for easy monitoring. This custom C-Type hydraulic straightening press is well-suited for the demands of sheet metal straightening in shipyard environments.
